SafeR-Series Slurry Pumps
Featuring modern safety features and improved efficiencies.
-

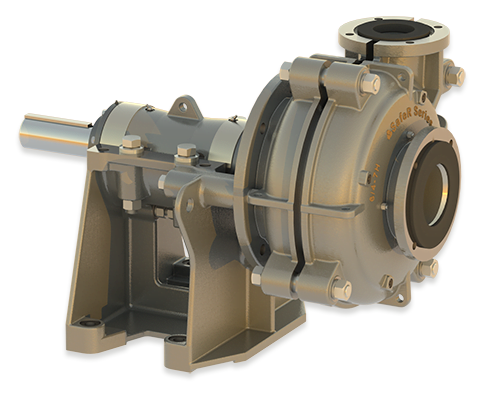

- Cross Section
-

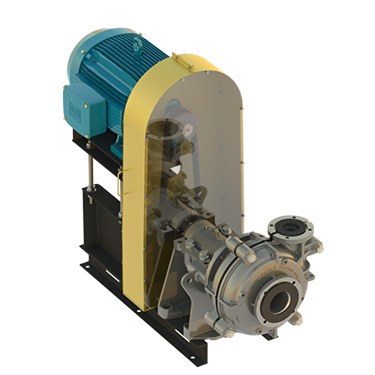

- ZV drive
-
- CV drive
SafeR-Series® slurry pumps are a safe and environmentally friendly solution ideal for harsh mining conditions.
The pump footprint and all parts are fully interchangeable with the 60-year-old industry workhorse, enabling old pumps to be retrofitted with safer designs. Upgrades are also available to extend pump life and reduce maintenance time with the One Liner, Gland Guard, Bulwark Bearing Guard, Safer Seal or Wolfram Long Life Shaft Sleeves.
We currently hold extensive pump builds from 1.5/1 to 8/6, with competitive lead times for larger sizes.
Specifications
Applications
Specifications
Range: Discharge size 25mm to 450mm (1” to 18”)
Flows to: 7,300m³/h (32,140 USGPM)
Heads to: 73m (240ft)
Pressure to: 2020kPa (300psi)
Applications
– Mineral processing
– Low pressure tailings
– Mill discharge
– Coal preparation
Features
Sealing mechanism
A variety of seals are available including packed gland, expeller or mechanical seal. The sealing arrangement can be upgraded with a Gland-Guard which reduces flush water costs and keeps slurry out of gland packing, extending overall wear life. Flushless designs are available on request.
Bearing assembly
All bearings are heavy duty to reduce stock requirements and extend wear life. They can be upgraded with a Bulwark Bearing Guard which last at least triple the life of conventional piston ring designs.
Wet end
Material options include hard metals, polyurethane or rubber.
